Heavy duty anchor with countersunk screw

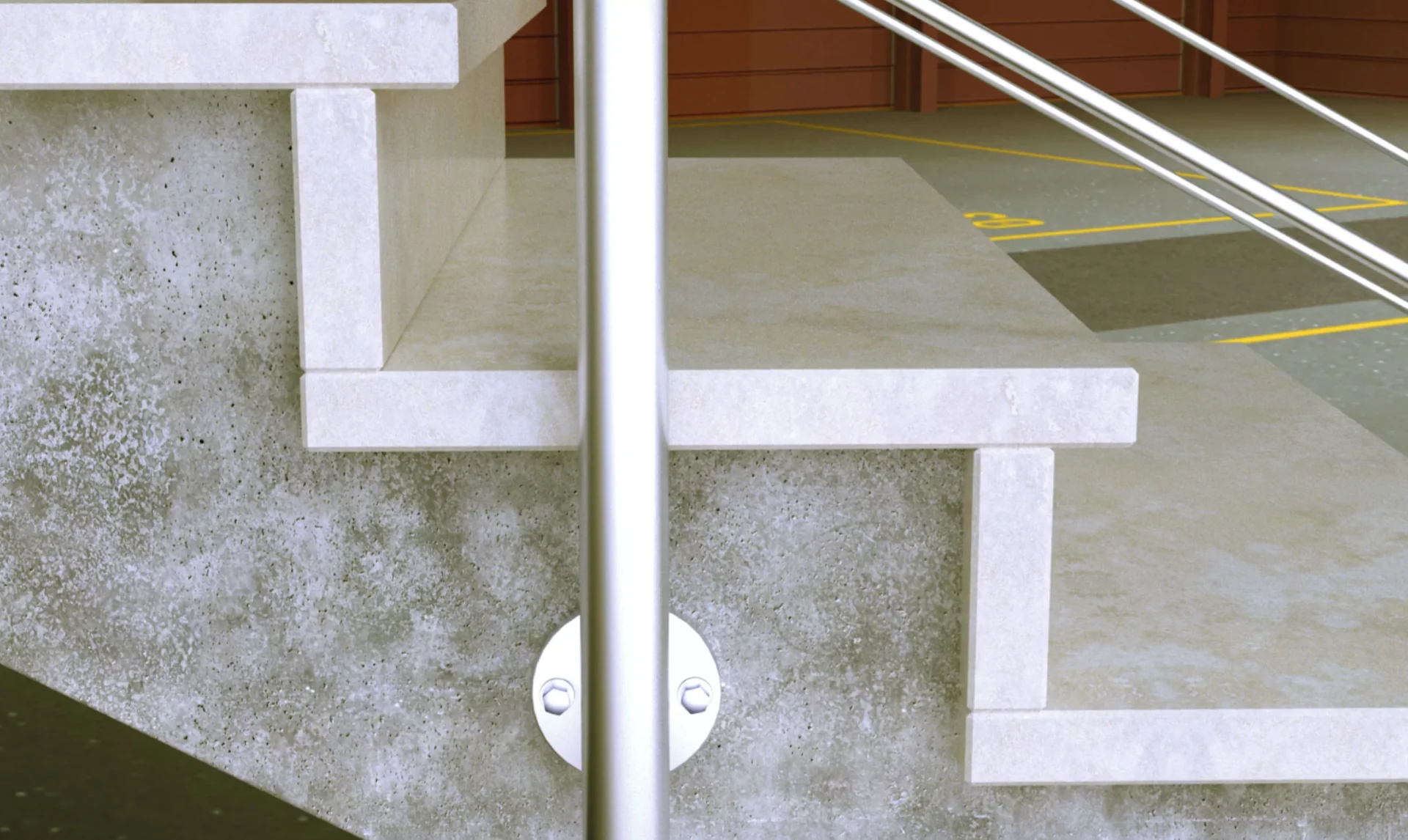

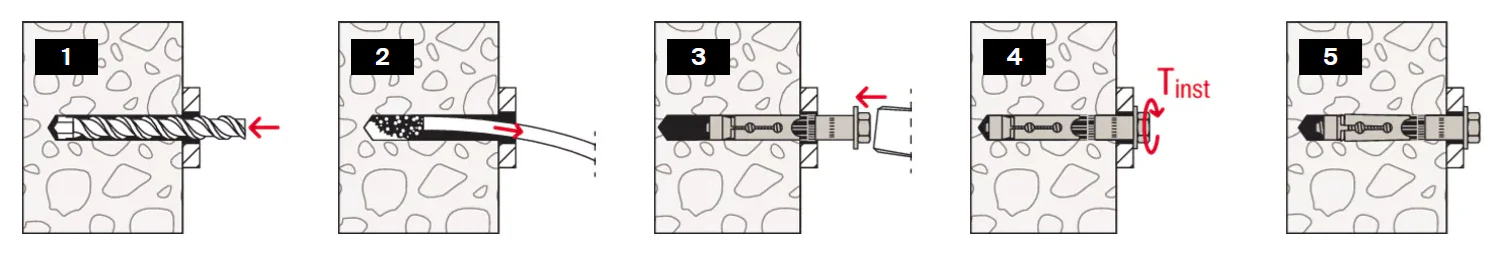

The Fischer high-performance anchor with countersunk head is a sleeve anchor made of zinc-plated steel. The anchor is set in the time-saving through-type installation. When tightening the anchor, the cone is pulled into the expansion sleeve and expands it against the hole wall. The black plastic ring prevents the anchor from rotating and absorbs the torque slippage. This means that the fixture is pulled towards the anchoring base. The Fischer high-performance anchor FH II SK with countersunk head is ideally suited to fix railings, staircases, and ladders in cracked and non-cracked concrete.

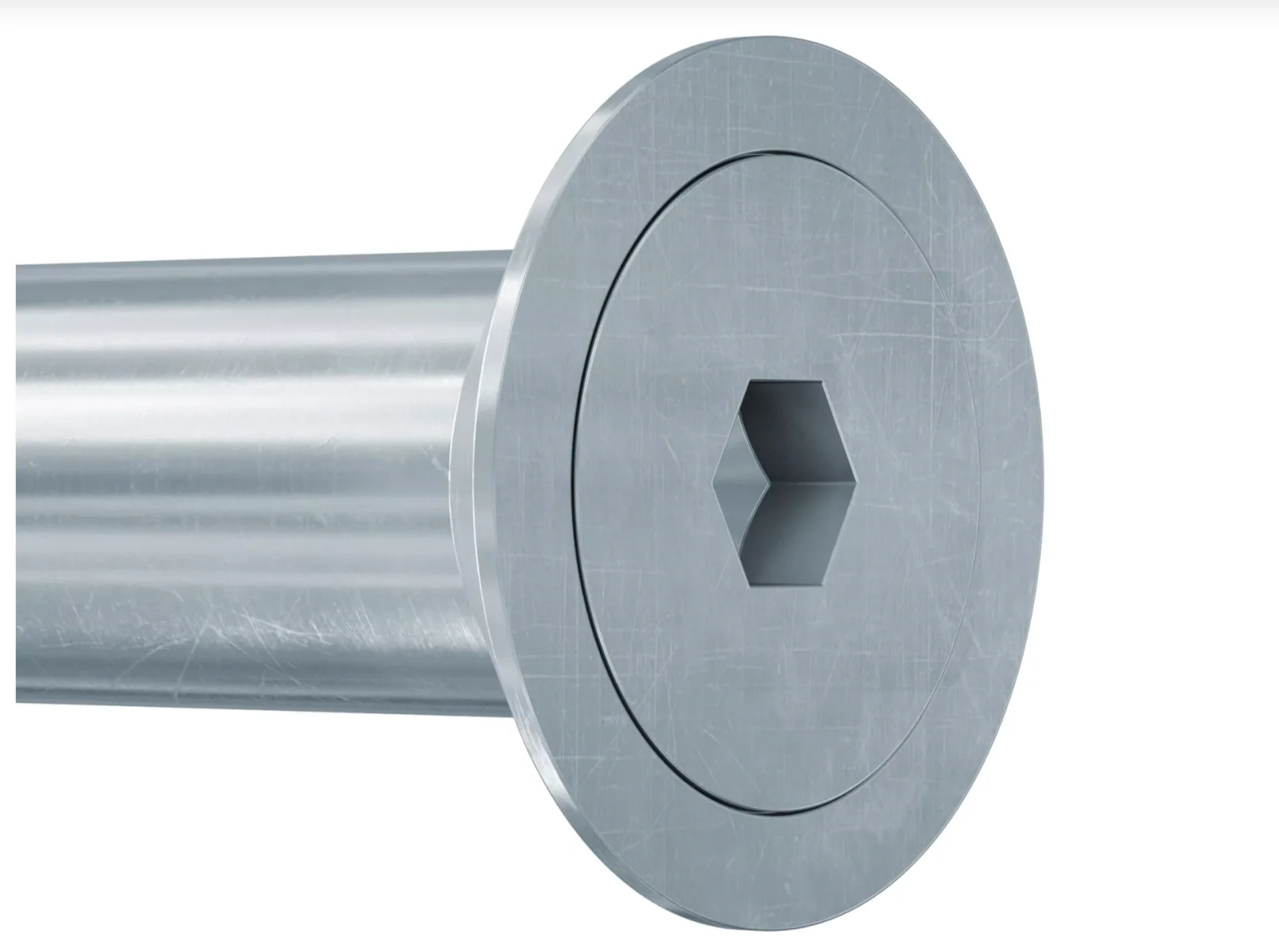

With countersunk head for assembly that is flush to the surface.
The international approvals guarantee maximum safety and maximum performance. Also for applications in earthquake regions (seismic C1 and C2).
The ideal combination of screw shank and sleeve enables a high transverse load capacity and fewer fixing points.
The optimised geometry intelligently reduces the setting energy and thus ensures a force-saving assembly.

ETA-approval: YES

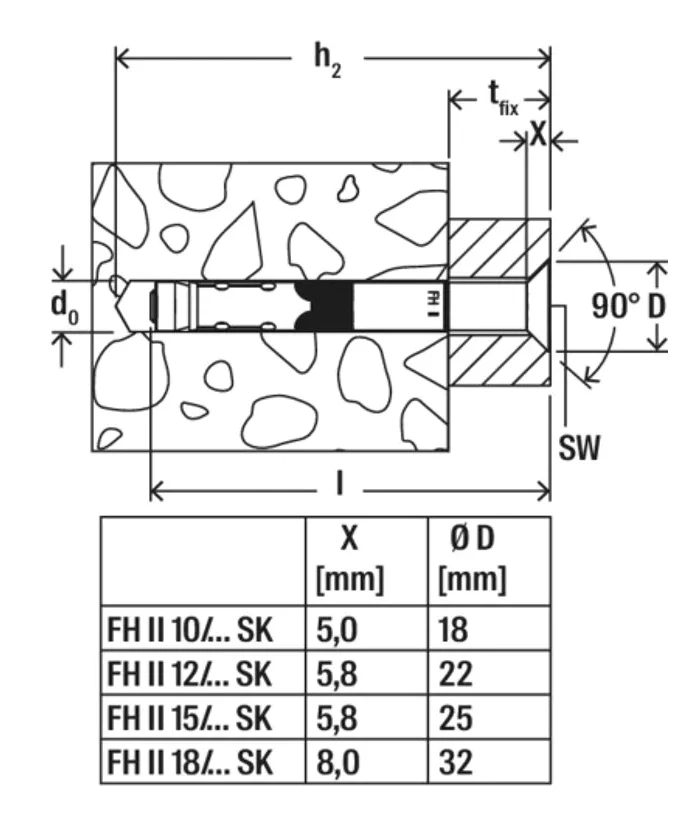

Drill diameter (d0) : 12 mm
Min. drill hole depth for through fixings (h2): 130 mm
Max. fixture thickness (t fix): 50 mm
Thread (M): M8
Packaging: Folding box
Amount: 25 pcs.
GTIN (EAN-Code): 4006209449196
Seismic-Approval: C1 / C2
