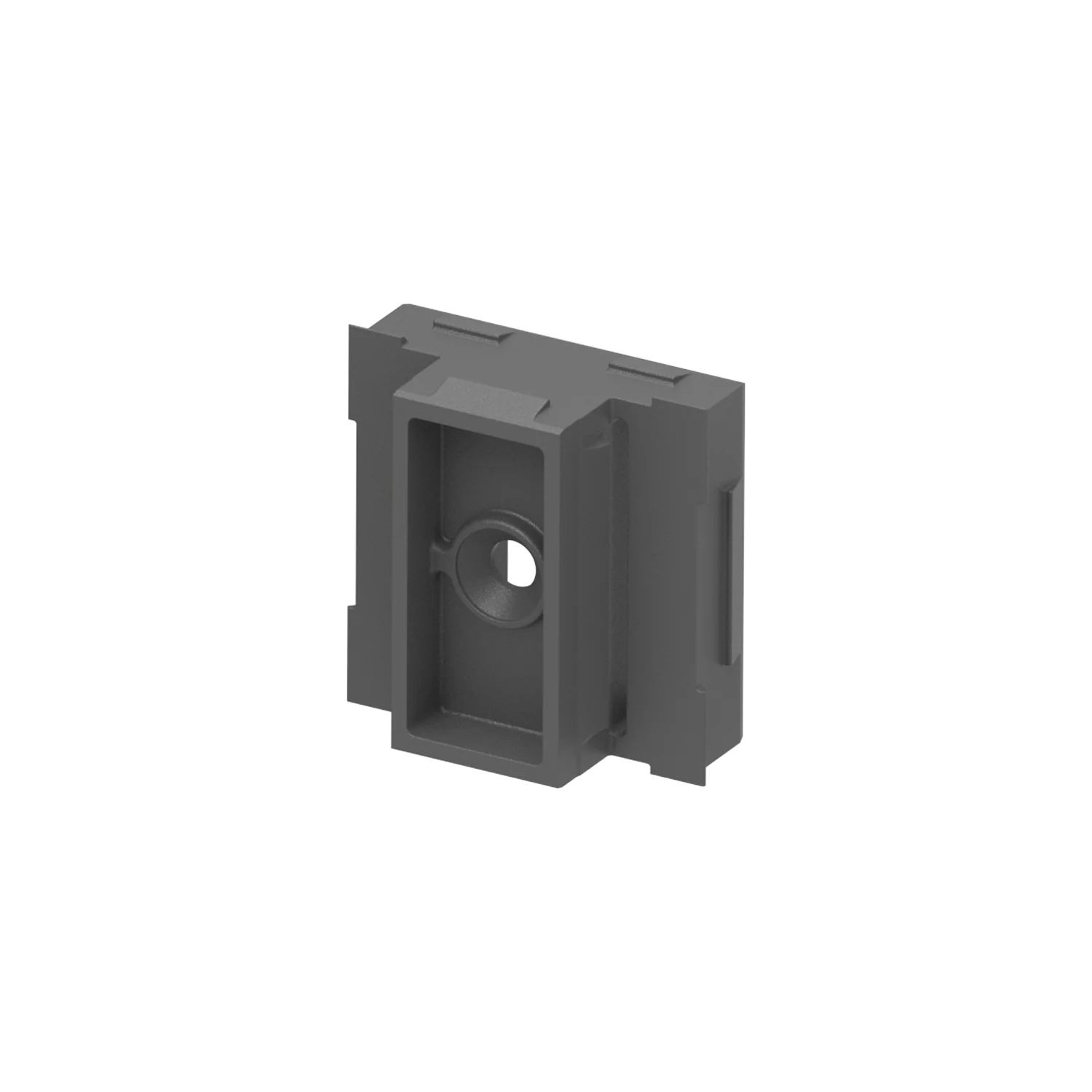

Click-lock connector for façade system, 45 x 25 – Anthracite RAL 7016, 50pcs

Click-lock connector for facade system, 45 x 25 - Anthracite RAL 7016

Product code:  A19/45x25-R7016

Material

• COP plastic (Cyclo Olefin Polymer) solid, dimensionally stable with good resistance to

  heat and aging, UV stable under AL strip.

• Trouble-free drilling and thread cutting.

• Does not break, does not tear.

Surface treatment

• Shade Anthracite RAL 7016
• Long-term color fastness and UV stability

Dimensions

• Cover cross-section: 40 x 40 x 21

Installation and compatibility

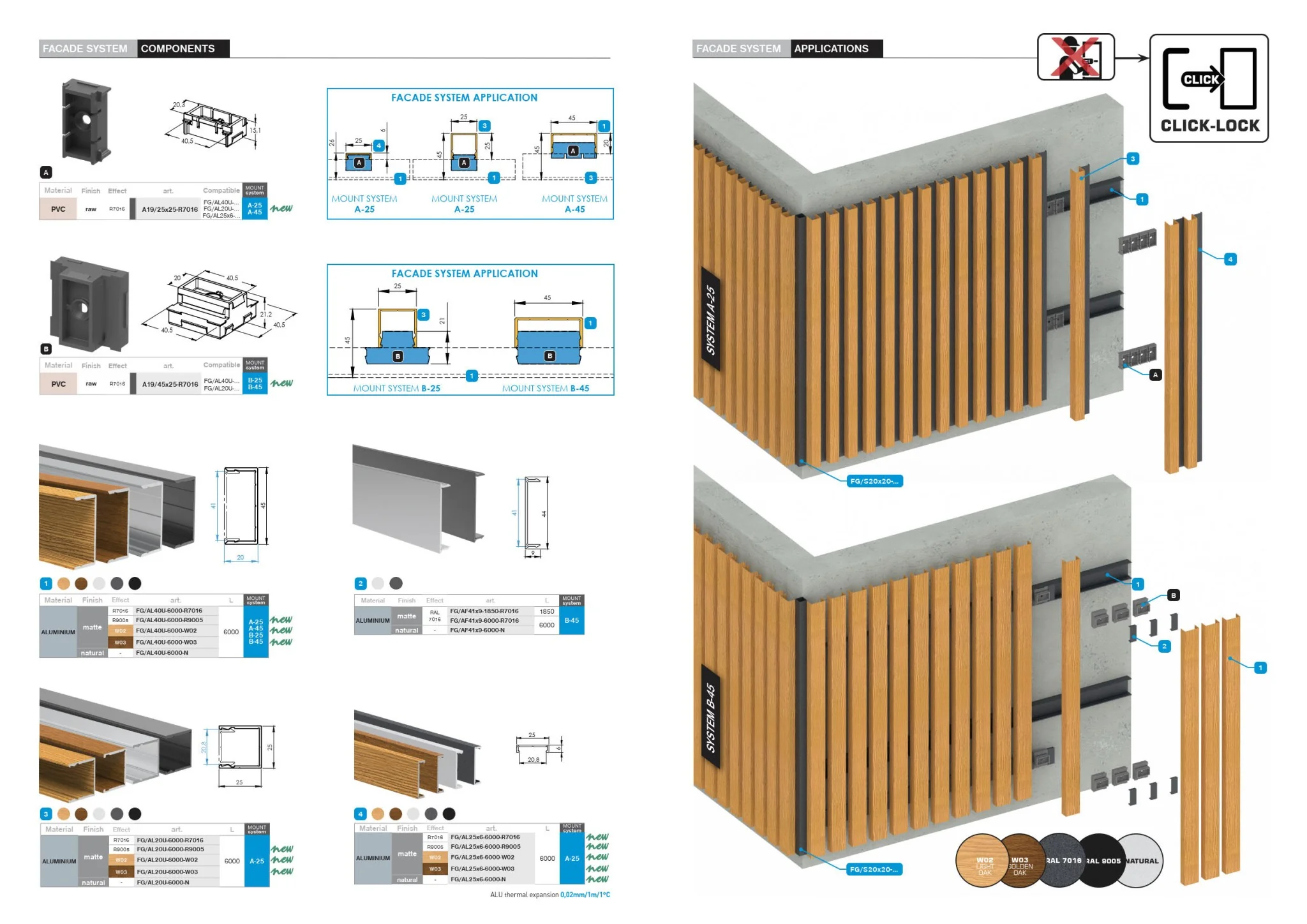

• Interior facade installation system - quick installation without welding

• Easy disassembly and replacement of individual parts in case of modifications or damage

• Use as a click-on connector for anchoring vertical facade profiles (product code

  FG/AL40U..., resp. FG/AL20U...), into identical supporting facade profiles  (code

  of the product  FG/AL40U..., resp. FG/AL20U...), without the need for welding

• Compatible with Umakov profiles and accessories (end profiles, connecting material A2)

• Accessories: stainless steel connecting material

Advantages
• Easy replacement or disassembly of individual parts during maintenance or of damaged components
• No need for additional surface treatment
• Quick assembly by snapping  into the profile  - saving time and costs
