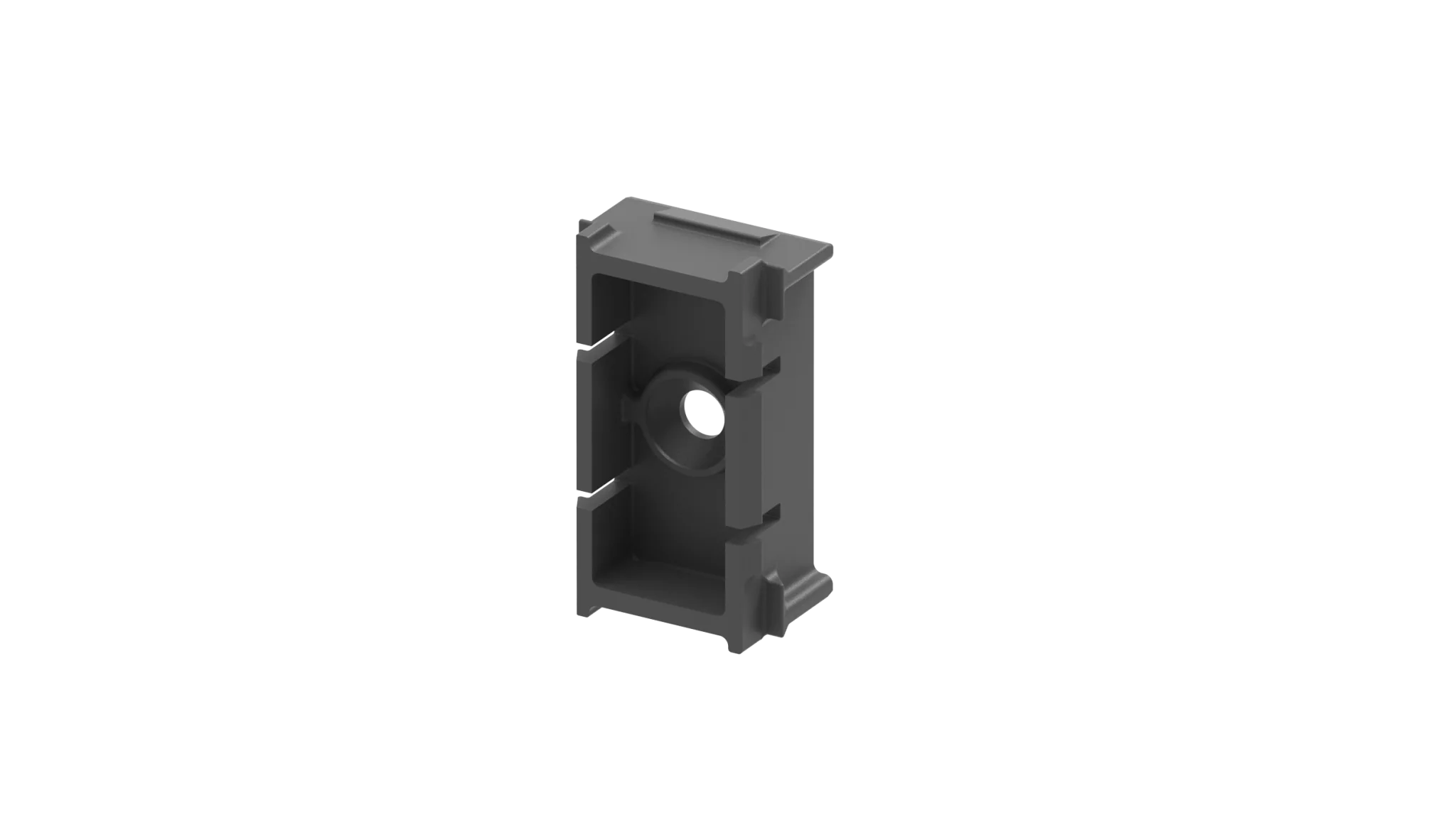

Click-lock coupling for facade system, 25 x 25 - Anthracite RAL 7016, package of 50 pcs
Product code: A19/25x25-R7016.
Material
• COP plastic (Cyclo Olefin Polymer) rigid, dimensionally stable with good resistance to heat and aging, UV stable under AL profile.
• Trouble-free drilling and threading.
• Does not break, does not tear.
Surface treatment
• Shade Anthracite RAL 7016.
• Long-term color fastness and UV stability.
Dimensions
• Cover cross-section: 40 x 20 x 15.
Installation and compatibility
• Interior facade mounting system - quick installation without screwing or welding.
• Easy disassembly and replacement of individual parts during modifications or in case of damage.

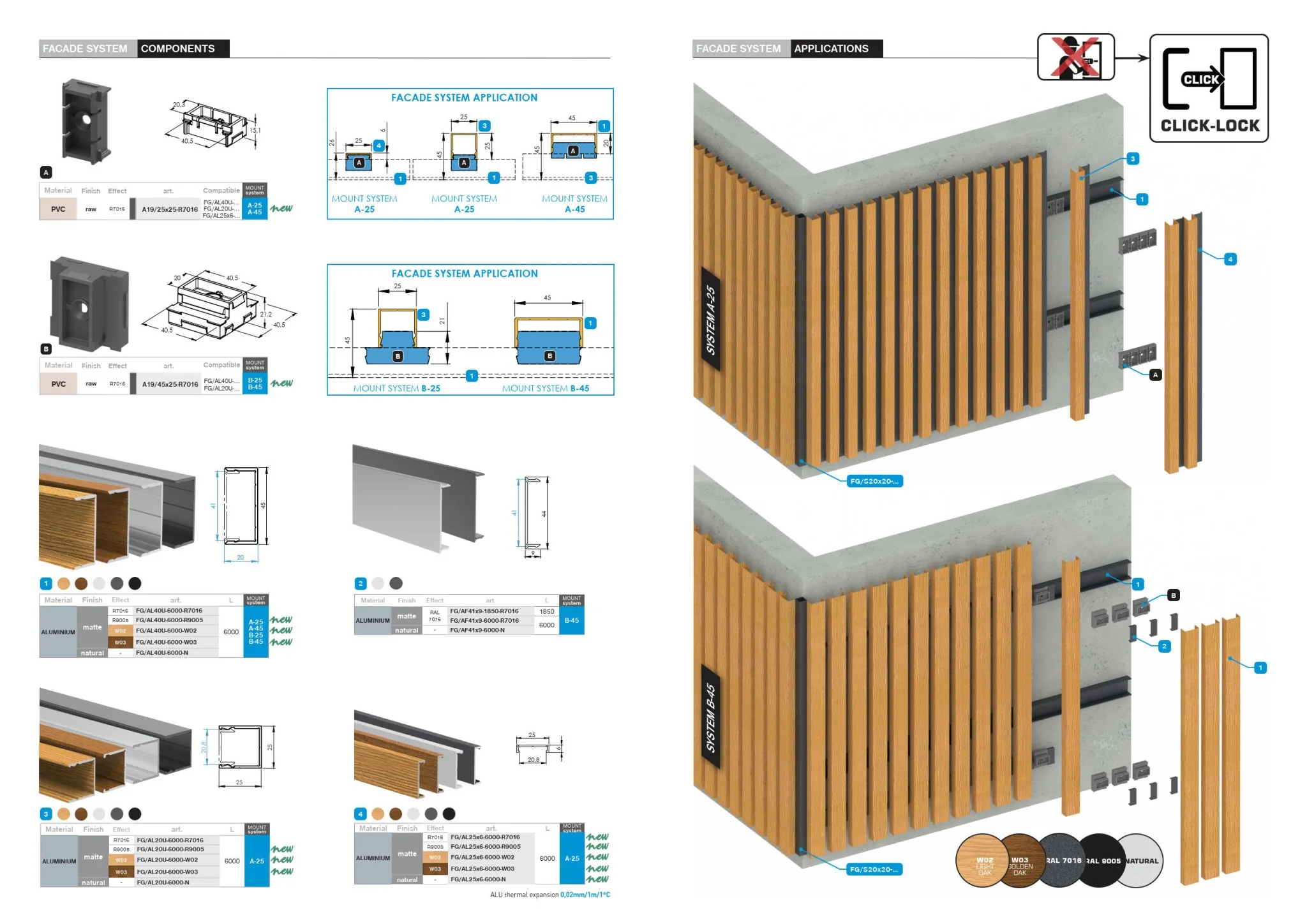

• Used as a click-in connector for anchoring vertical facade profiles (product code FG/AL40U..., resp. FG/AL20U..., resp. FG/AL20x6...), into load-bearing facade profiles (product code FG/AL40U..., resp. FG/AL20U...), without the need for screwing or welding.
• Compatible with Umakov profiles and accessories (end profiles, A2 connection material).
• Accessories: stainless connection material.
Advantages
• Easy replacement or disassembly of individual parts during maintenance or for damaged components.
• No need for further surface treatment.
• Fast installation by clicking into the profile - saving time and costs.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Click-lock coupling for facade system, 25 x 25 - Anthracite RAL 7016, package of 50 pcs
Product code: A19/25x25-R7016.
Material
• COP plastic (Cyclo Olefin Polymer) rigid, dimensionally stable with good resistance to heat and aging, UV stable under AL profile.
• Trouble-free drilling and threading.
• Does not break, does not tear.
Surface treatment
• Shade Anthracite RAL 7016.
• Long-term color fastness and UV stability.
Dimensions
• Cover cross-section: 40 x 20 x 15.
Installation and compatibility
• Interior facade mounting system - quick installation without screwing or welding.
• Easy disassembly and replacement of individual parts during modifications or in case of damage.
• Used as a click-in connector for anchoring vertical facade profiles (product code FG/AL40U..., resp. FG/AL20U..., resp. FG/AL20x6...), into load-bearing facade profiles (product code FG/AL40U..., resp. FG/AL20U...), without the need for screwing or welding.
• Compatible with Umakov profiles and accessories (end profiles, A2 connection material).
• Accessories: stainless connection material.
Advantages
• Easy replacement or disassembly of individual parts during maintenance or for damaged components.
• No need for further surface treatment.
• Fast installation by clicking into the profile - saving time and costs.
