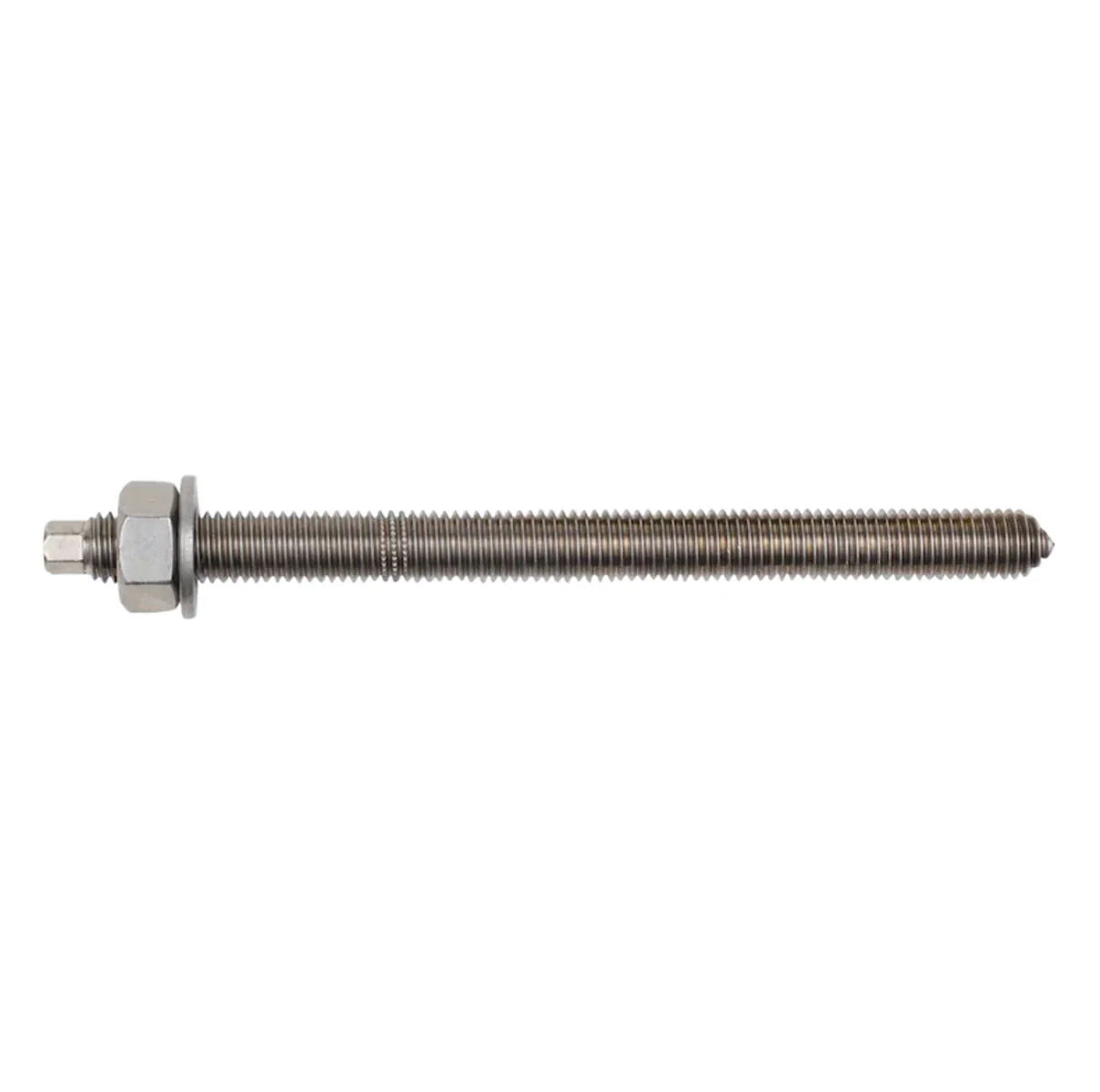

Anchor rod - stainless steel, AISI316, M12, L160

Anchor rod with peak angle and hex socket (allows rotary impact insertion with cassette system)
Usage:
- in dry indoor spaces
- outdoors (including use in industrial atmospheres and coastal areas) or in humid rooms, unless particularly aggressive conditions are present.

Approval:
ETA-06/0074
ETA-09/0040
ETA-12/0164
ETA-05/0034
ETA-12/0569
ETA-17/0127
ETA-19/0543
ETA-21/0168

Metric anchor diameter: M12
Property class: 70
Attachment height: 35 mm
Anchor length: 160 mm
Effective anchoring depth: 110 mm
Nominal drill-bit diameter injection system: 14 mm
Drill hole depth: 110 mm
